Woven Gabion Mesh is a flexible, durable structure made from double-twisted hexagonal wire mesh, commonly used for erosion control, slope stabilization, riverbank protection, and retaining wall construction. Manufactured from galvanized, PVC-coated, or Galfan-coated steel wire, this mesh offers high tensile strength, corrosion resistance, and long service life in harsh environments. Its flexibility allows it to adapt to ground movement without losing structural integrity, making it ideal for use in hydraulic engineering, road and railway embankments, and coastal protection projects.

Coating Options

• Electro-galvanized steel wire
• Hot-dip galvanized steel wire
• Galfan-coated wire (95% zinc, 5% aluminum)
• PVC coating per EN 10245 standard

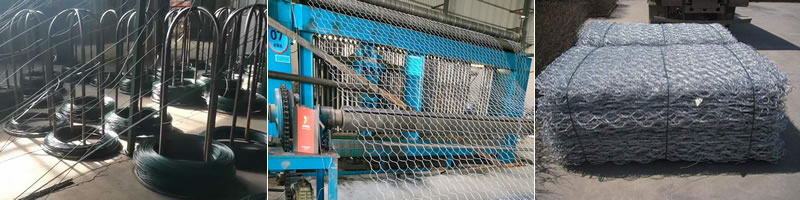

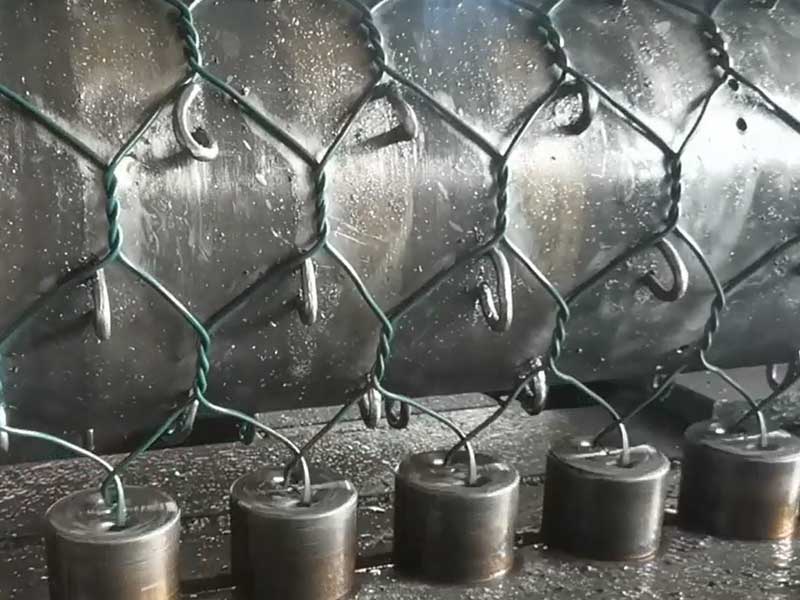

Production Process

Characteristics

1. Flexible structure suitable for unstable soils
2. Resistant to corrosion and environmental degradation
3. Long service life due to dual or triple protection
4. Easily folded and assembled on-site
5. High drainage capacity, ideal for hydraulic structures

Specification:

Opening (mm)	Wire Diameter (Metal Wire) (mm)	Wire Diameter (PVC Coated)/ Inner/Outside (mm)	Size(m)	Strands
60X80	φ2.0-2.8	φ2.0/3.0-2.5/3.5	1x1x0.3 1x1x0.5 2x1x0.3 2x1x0.5 2x1x1 4x2x1 6x2x0.3 6x2x1 As yourrequest	3
80X100	φ2.0-3.2	φ2.0/3.0-2.8/3.8		3
80X120	φ2.0-3.2	φ2.0/3.0-2.8/3.8		3
100X120	φ2.0-3.4	φ2.0/3.0-2.8/3.8		3
100X150	φ2.0-3.4	φ2.0/3.0-2.8/3.8		3
120X150	φ2.0-4.0	φ2.0/3.0-3.0/4.0		3

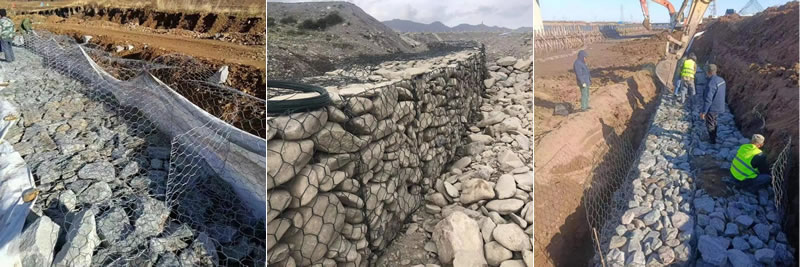

Applications

• River and flood control: Protect banks, channels, and shorelines
• Slope stabilization: Prevent landslides and soil erosion
• Retaining walls: Support embankments and cut slopes
• Road and railway embankments: Reinforce infrastructure edges
• Sound barriers: Combined with vegetation for noise control
• Marine and seaport engineering: Withstand wave and salt exposure
• Bridge and culvert protection: Reinforce abutments and approaches
