Stainless Steel Wire enjoys many featues, such as wear-resistant, high intensity, small Stretch ability; because the fine wire, oil and ink is easy to pass; Mechanical and chemical Properties of wire mesh is stably, also the dimension definition is stably.

Applications: Stainless Steel Wire is used in wire-drawing, weaving of wire mesh, soft pipe, beam of cabinet, steel wire rope, filter material and equipment, spring, etc

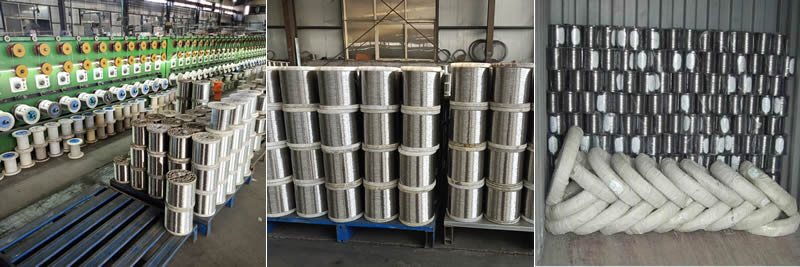

Product Name	Stainless steel wire
Type	200 series: 201,202
	300 series: 301,302,304,304L,308,309S,310s,316,316L,321,347
	400 series: 410,420,430,434
Wire diameter	0.02-5mm
Standard	ASTM AISI GB JIS SUS DIN
Length	As customers’ requirement

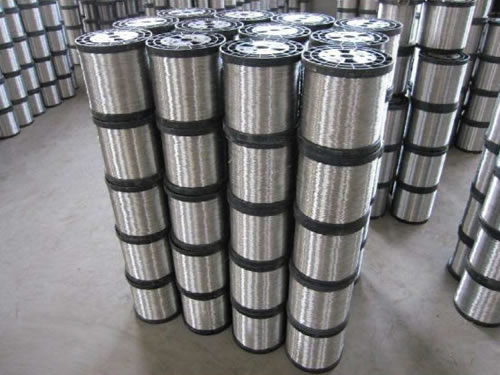

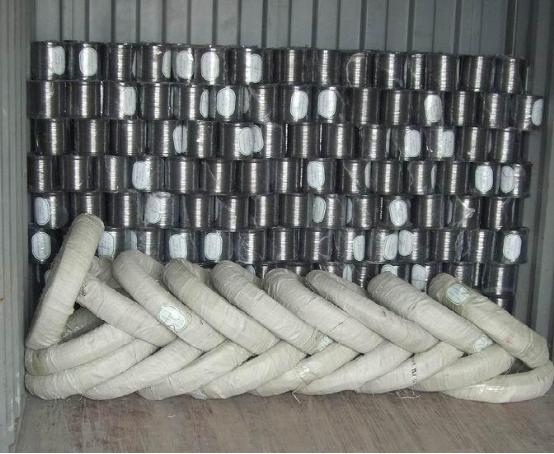

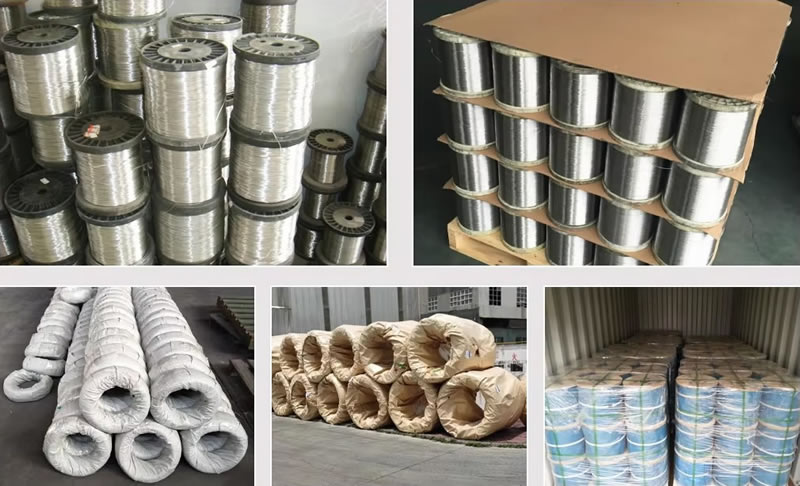

Packing	Spool or roll
MOQ	50kg
Delivery	20 days after received the deposit
Usage	Lifting,fixing,cableway,hanging,supporting,refloatation,haulage.

Wire Diameter(mm)	Tolerance(mm)	Max. Deviation Tolerance (mm)
0.020-0.049	+0.002/-0.001	0.001
0.050-0.074	±0.002	0.002
0.075-0.089	±0.002	0.002
0.090-0.109	+0.003/-0.002	0.002
0.110-0.169	±0.003	0.003
0.170-0.184	±0.004	0.004
0.185-0.199	±0.004	0.004
0.200-0.299	±0.005	0.005
0.300-0.310	±0.006	0.006
0.320-0.499	±0.006	0.006
