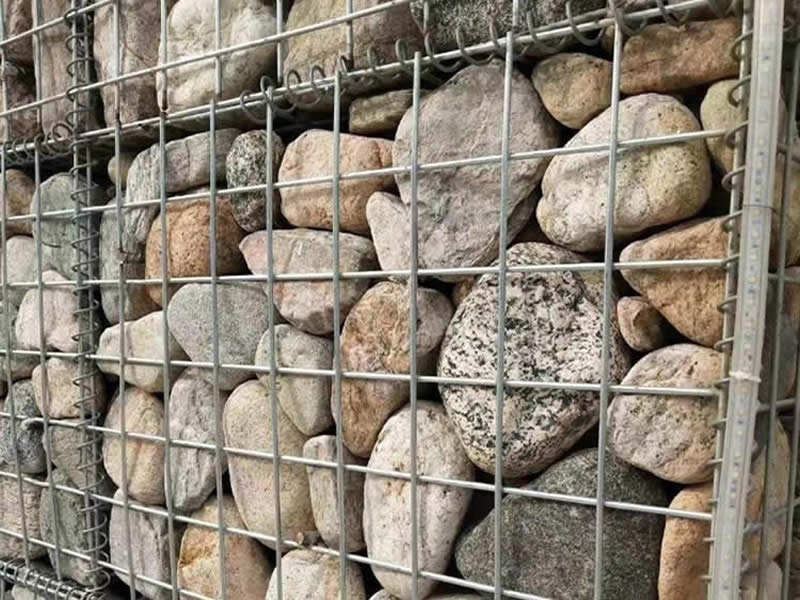

Welded Gabion Mesh is a rigid wire container structure made from high-strength steel wires that are electrically welded into square or rectangular mesh panels. Commonly manufactured using hot-dip galvanized, Galfan-coated, or stainless steel wire, welded gabion mesh offers excellent durability, corrosion resistance, and structural integrity. It is widely used for retaining walls, erosion control, landscape design, architectural cladding, sound barriers, and military defense applications. The welded structure ensures a uniform shape and flat surface, making it ideal for both functional and decorative installations.

Materials Used
To ensure long service life in demanding environments, Welded Gabion Mesh is offered with various coatings:

• Hot dip galvanized low carbon steel
• Galfan coated steel wire(95% Zn + 5% Al)
• Stainless steel (Grade 304/316)
• Alu-Zinc alloy coated steel
• PVC or polyester coating in green, grey, black

Welded Gabion Mesh Applications

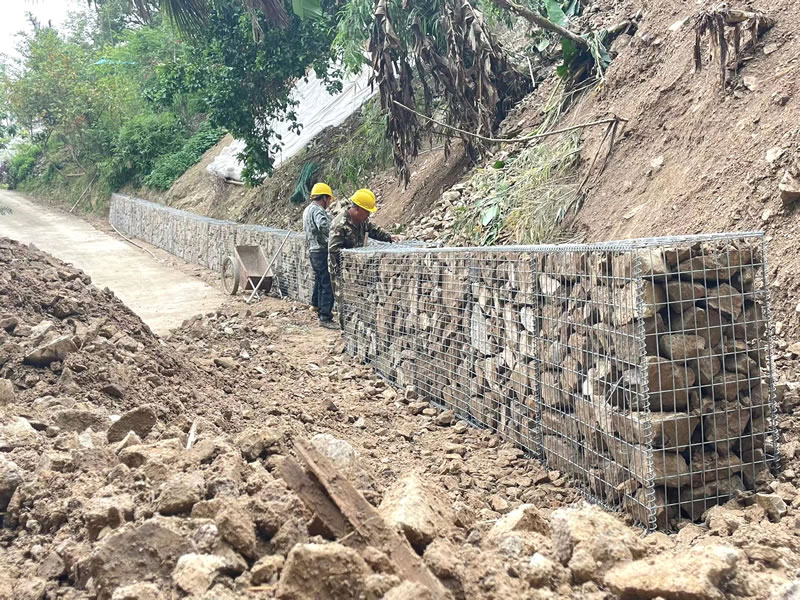

• Retaining wall systems for soil stabilization
• Facade and cladding designs for commercial buildings
• Noise barrier and highway shielding
• Riverbank and flood erosion protection
• Military defense and perimeter barriers

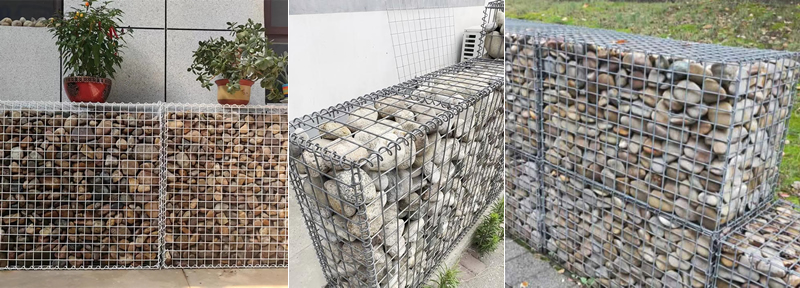

• Decorative garden partitions and planter walls

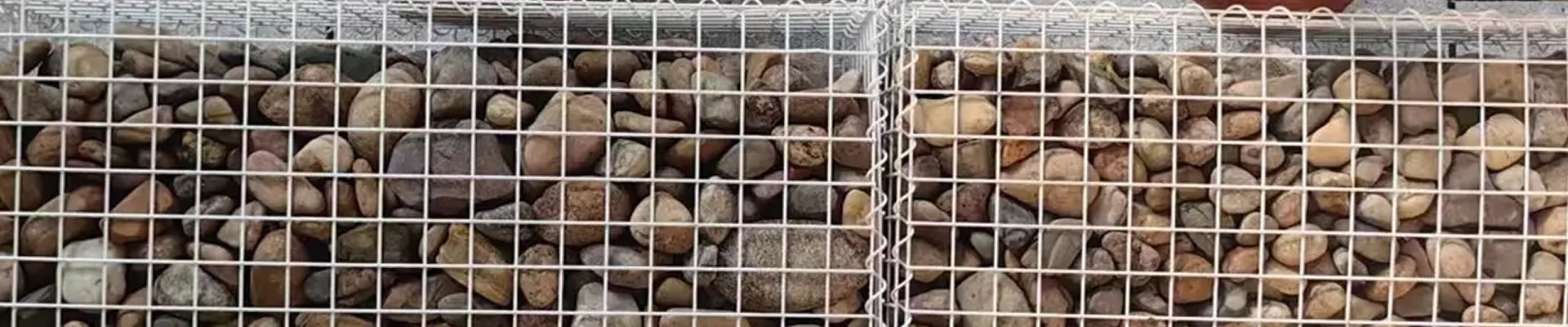

• Modular fencing with stone or sand infill

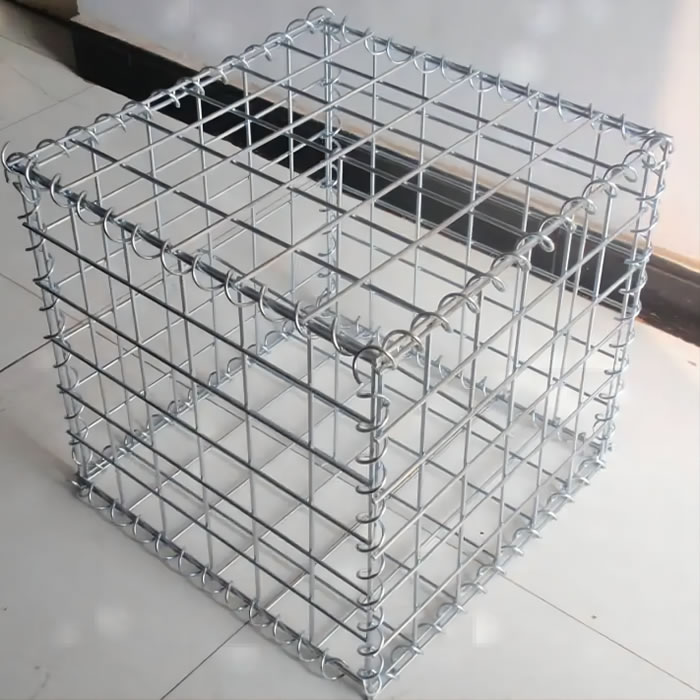

Name	Galvanized welded gabion basket
size	LxWxH=1x0.5x0.5m LxWxH=1x1x0.5m LxWxH=1x1x1m
Hole size	100x50mm   100x100mm  75 x 75 mm  50x50mm
Wire size	3mm   4mm ,4.5mm.  5mm  6mm
surface Treatment	High Hot Galvanized   >230g/m2
ALL Parts	6panel +12Spirals+4hooks

Packing & Assembly

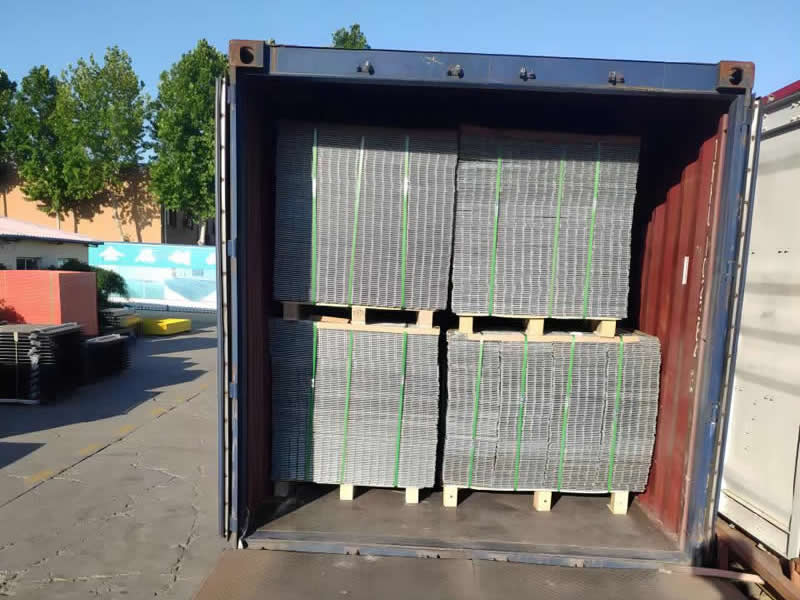

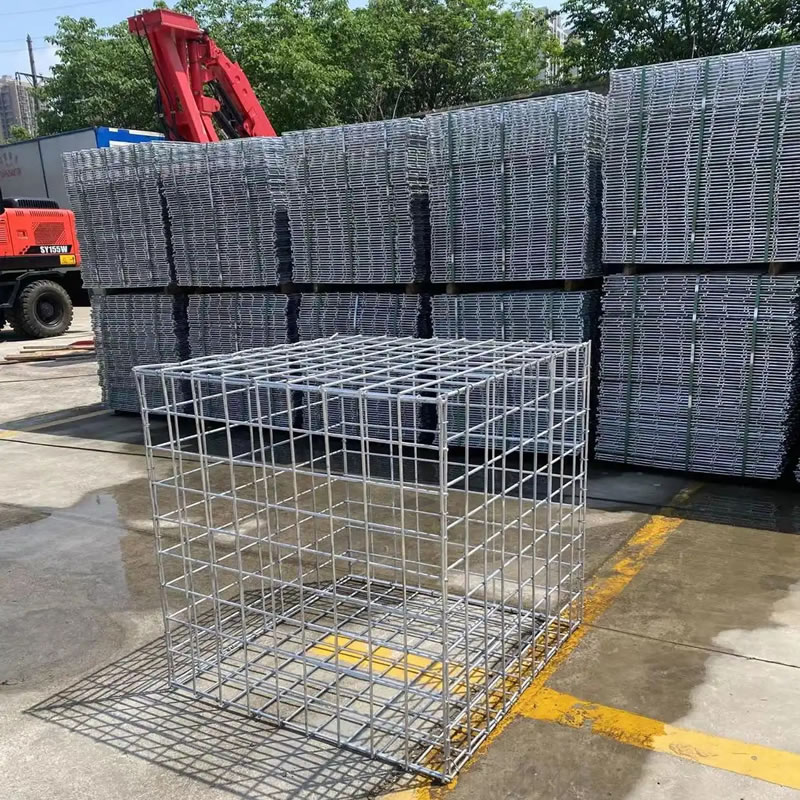

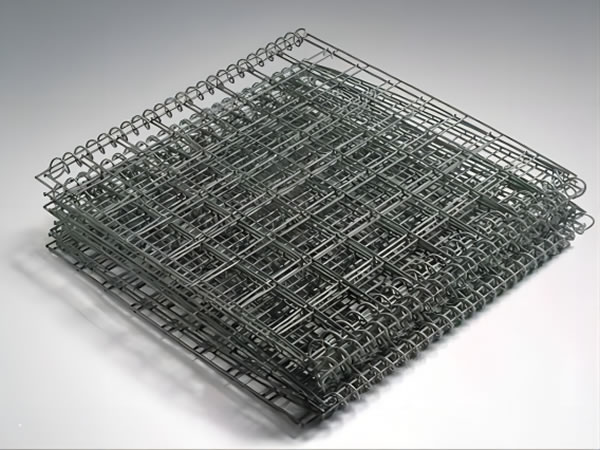

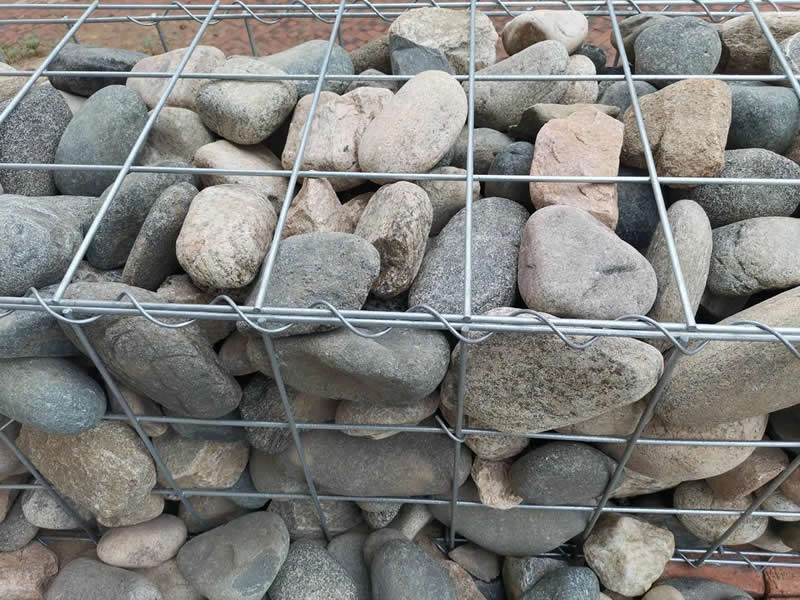

Welded Gabion Mesh panels are shipped flat-packed and come with spiral binding wires, clips, and lacing wire for on-site assembly. Optional features include geotextile liners, internal diaphragms, and pre-installed stiffeners for structural integrity during filling.
