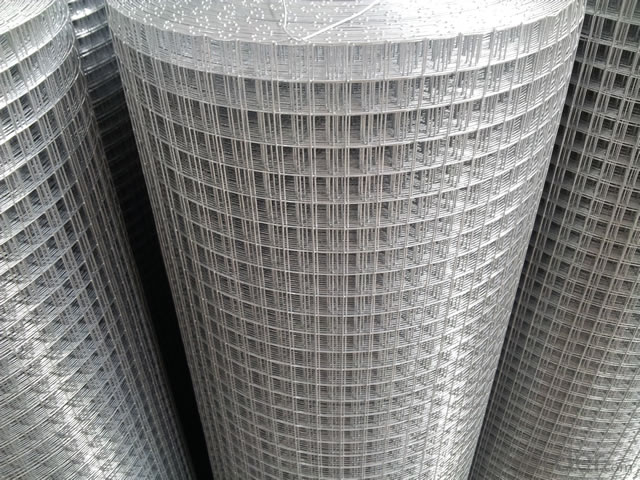

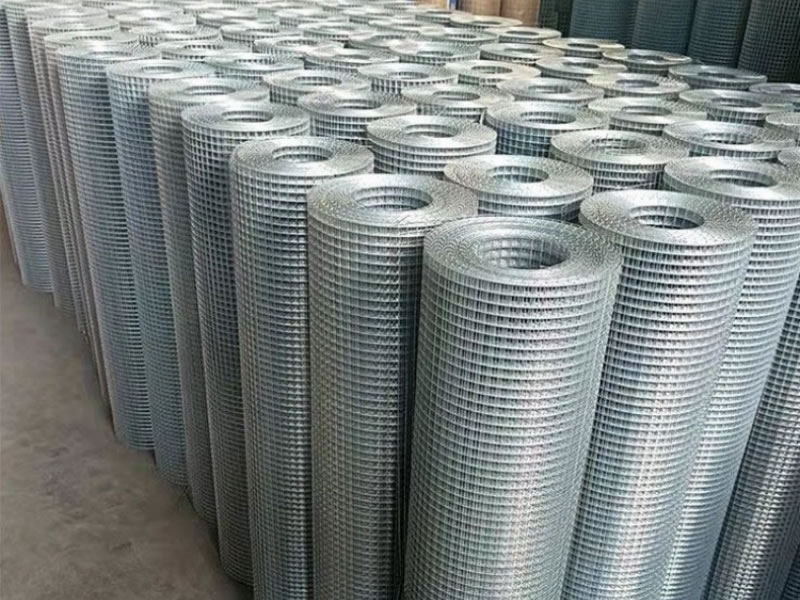

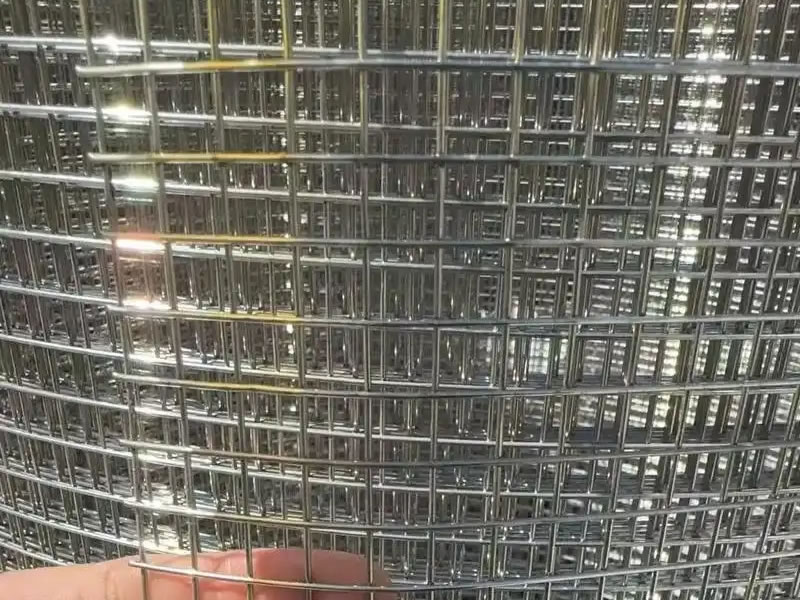

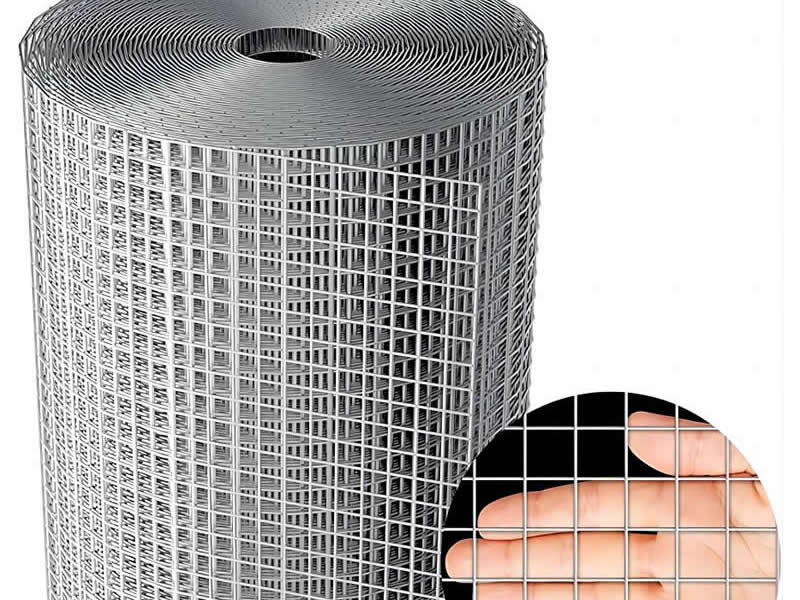

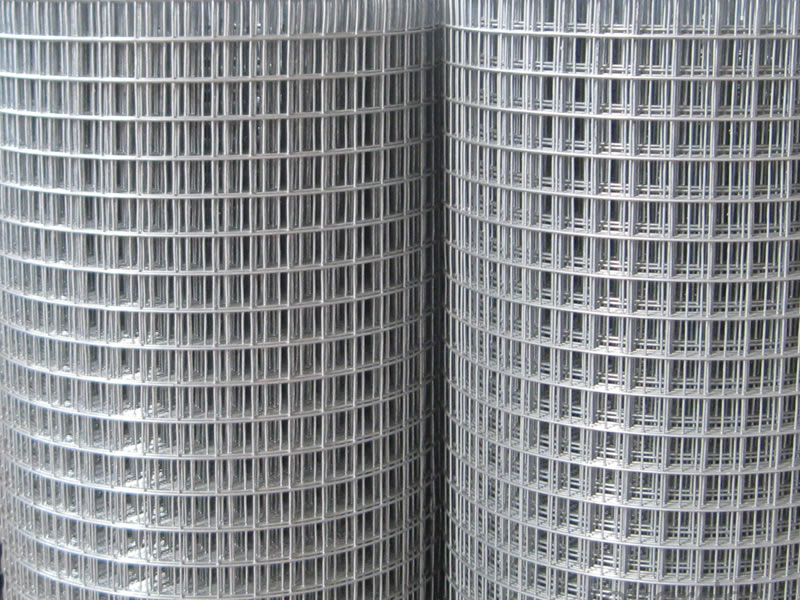

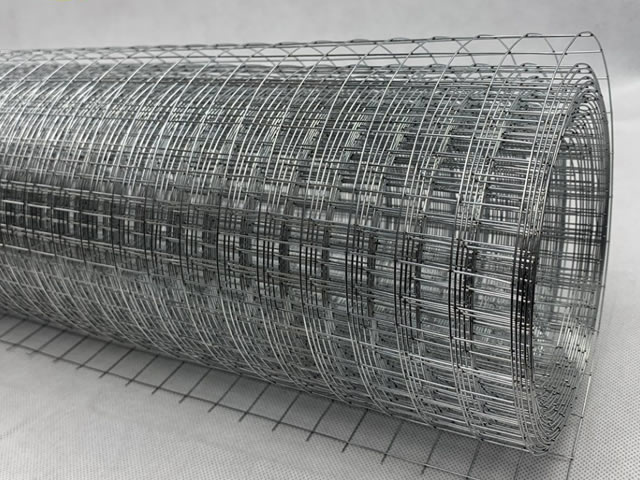

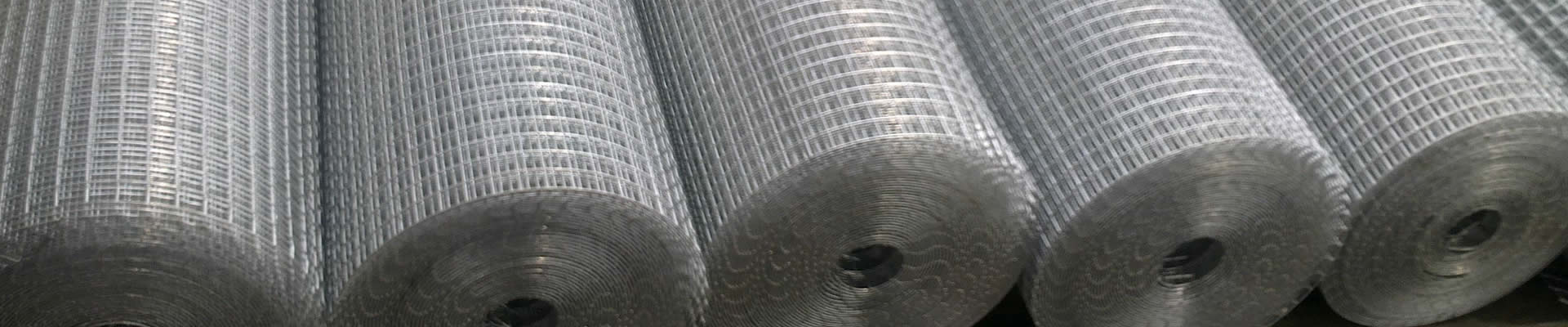

Hot-Dipped Galvanized Welded Wire Mesh is a durable and corrosion-resistant mesh product formed by welding steel wires into a grid pattern, then immersing the entire structure in molten zinc for full zinc coating. This hot-dip galvanization process provides superior rust protection, making the mesh ideal for both indoor and outdoor applications in harsh or humid environments. Commonly used in fencing, animal cages, building reinforcement, safety barriers, machine protection, and agricultural enclosures, it features a flat surface, strong welds, and long service life.

Surface Treatment and Coating

Hot Galvanized Welded Wire Mesh is zinc-coated after or before welding:

-Galvanized After Welding (GAW): Provides stronger corrosion resistance at weld points.
-Galvanized Before Welding (GBW): Offers clean appearance and consistent finish.
Typical zinc coating: 40g/m² – 120g/m²

Opening		Wire Diameter	Width	Length
In inch	In metric unit
1/4″ x 1/4″	6.4 x 6.4mm	BWG26-21	0.3m-2.0m	5m-50m
3/8″ x 3/8″	10.6x 10.6mm	BWG26-19
1/2″ x 1/2″	12.7 x 12.7mm	BWG25-16
5/8″ x 5/8″	16x 16mm	BWG25-16
3/4″ x 3/4″	19.1 x 19.1mm	BWG25-16
1″ x 1/2″	25.4x 12.7mm	BWG22-14
1″ x 1″	25.4x 25.4mm	BWG22-14
1-1/4″ x 1-1/4″	30 x 30mm	BWG20-12
1-1/2″ x 1-1/2″	38 x 38mm	BWG20-12
1″ x 2″	25.4 x 50.8mm	BWG19-12
2″ x 2″	50.8 x 50.8mm	BWG18-12
2” x 3″	50.8 x 76.2mm	BWG16-12
2” x 4″	50.8 x 101.6mm	BWG16-12

Applications

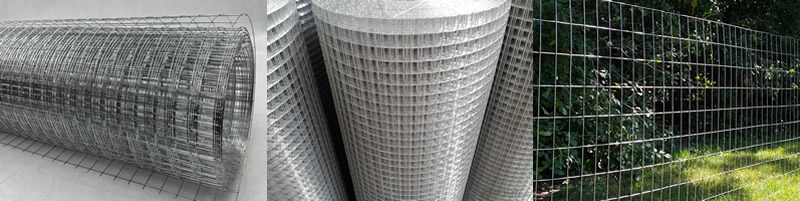

• Garden and field fencing
• Small animal cages and enclosures
• Interior partitions and shelving
• Reinforcement in concrete and plastering
• Ventilation screens and HVAC filters
• Agricultural crop protection

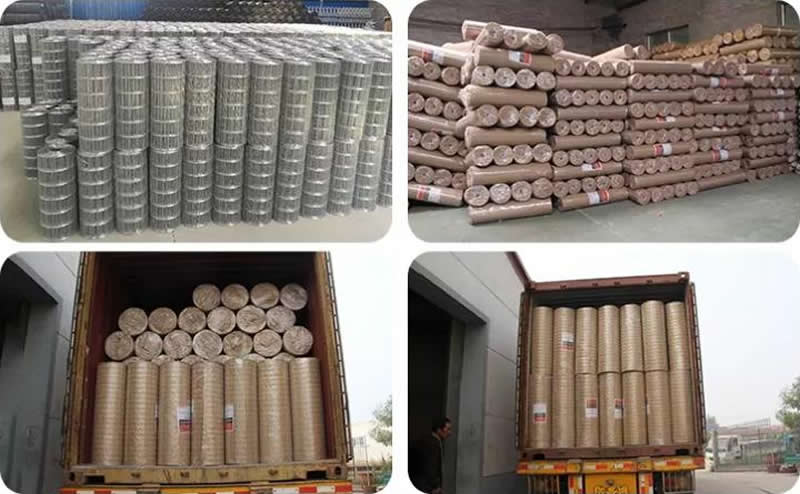

Packaging

• Rolls wrapped with paper, then woven bags or plastic film
• Panels stacked and secured for containerized shipment
• Custom packaging and labeling available for bulk orders
