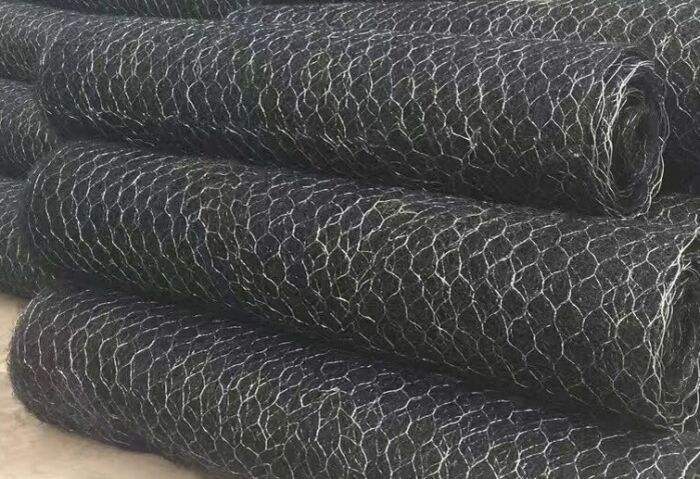

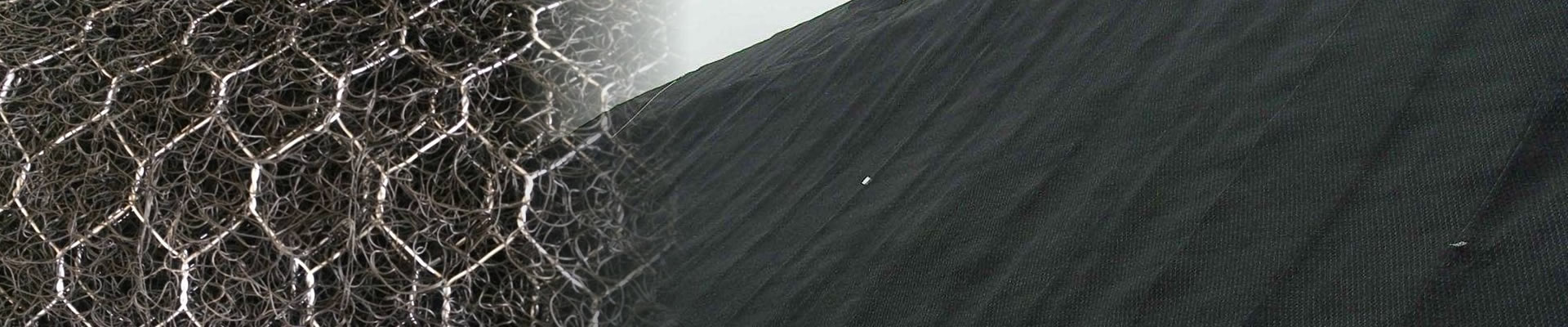

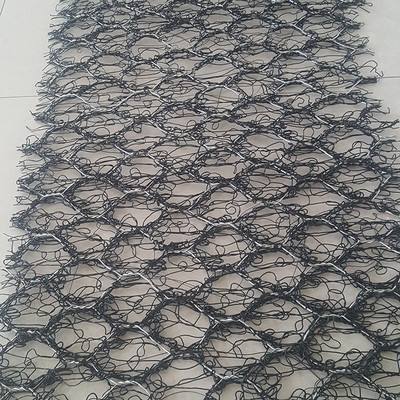

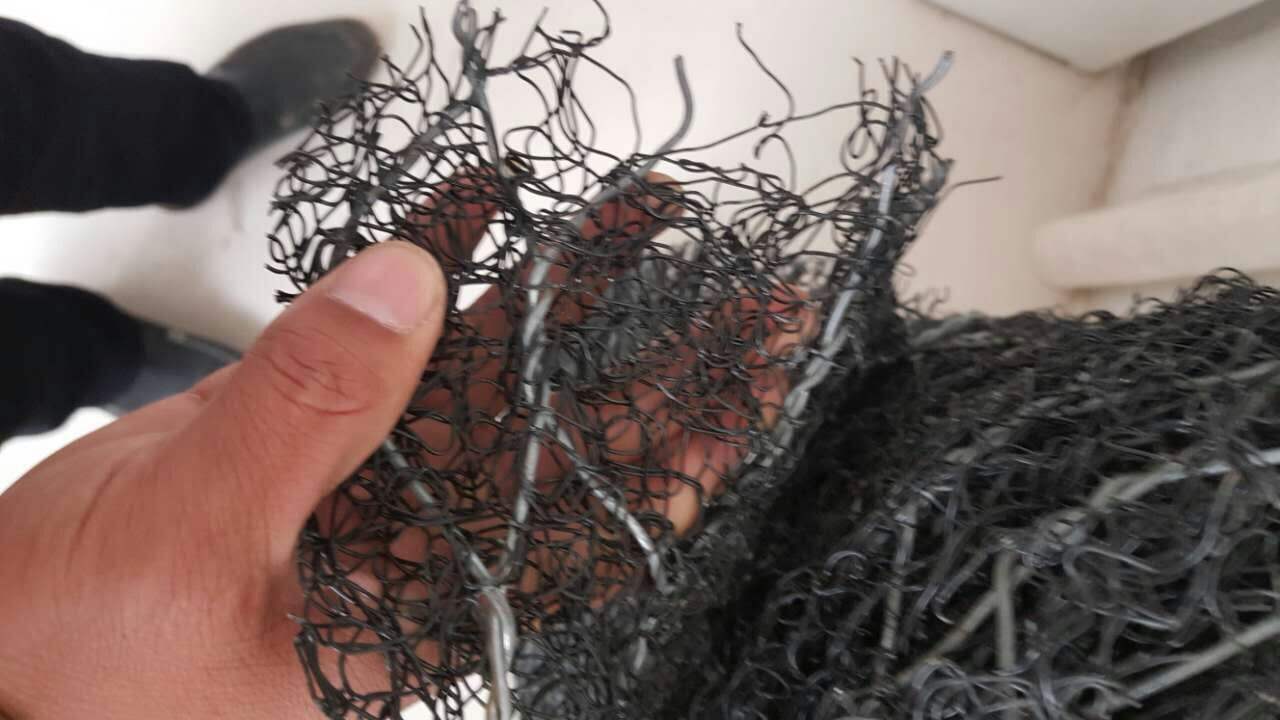

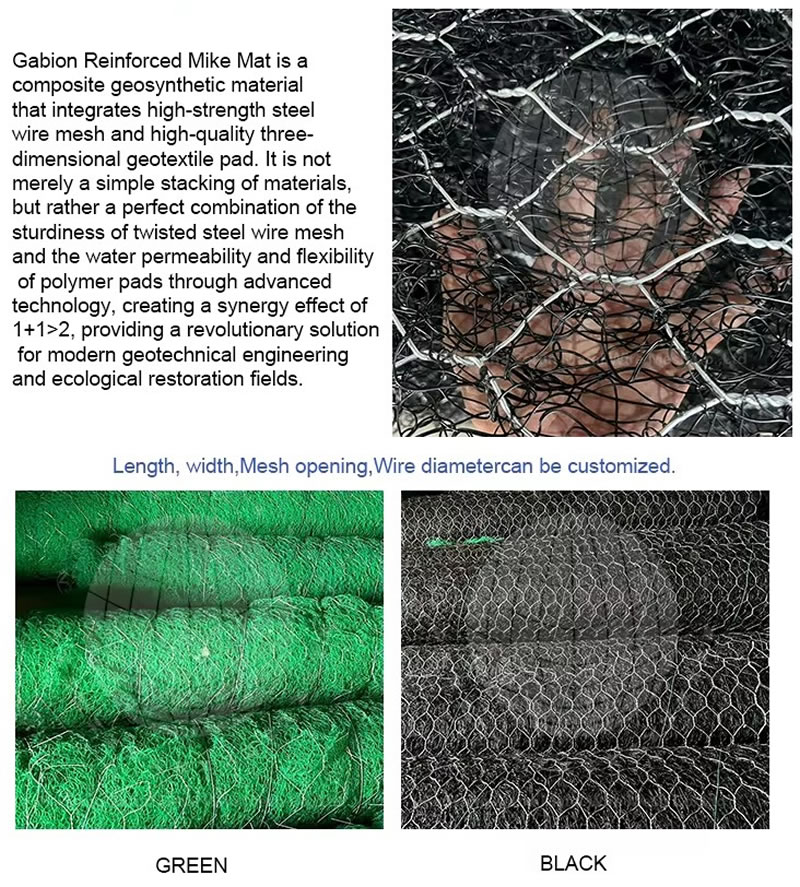

The reinforced Geomat mike mat is PP mesh mat composited with wire mesh, which is galvanized in case of erosion control. The structure allows enough space for keeping the soil and grass growing. It is malleable to suite the structure changing, and also easy to install. It can be widely used to Road bed, Rail way, Slope protection, Sea coast protection & erosion control and Channel.

Key Specifications/ Special Features:

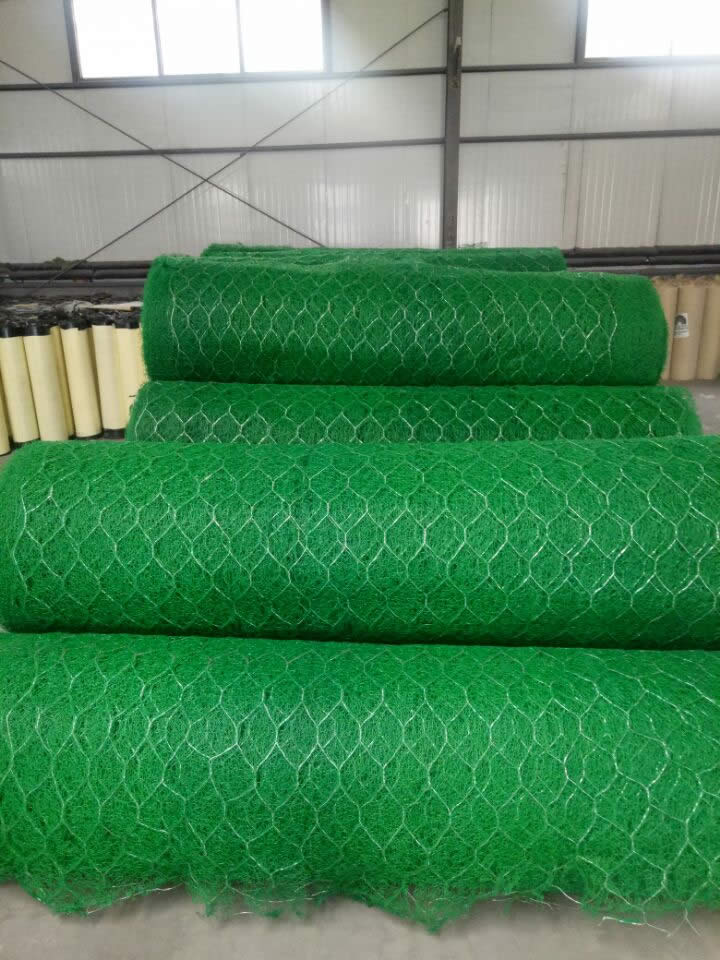

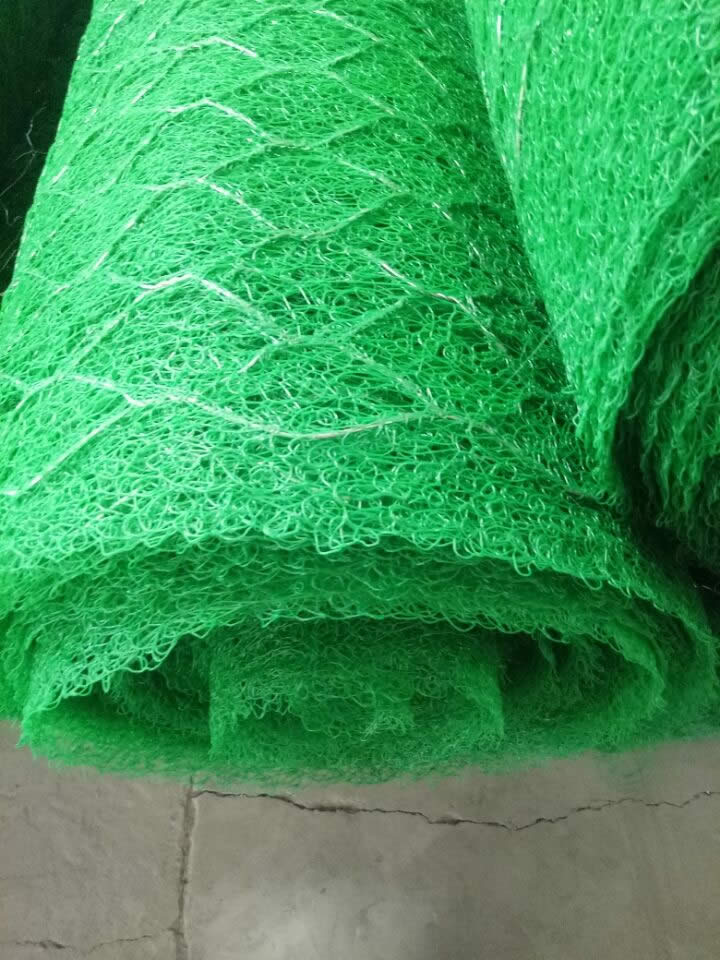

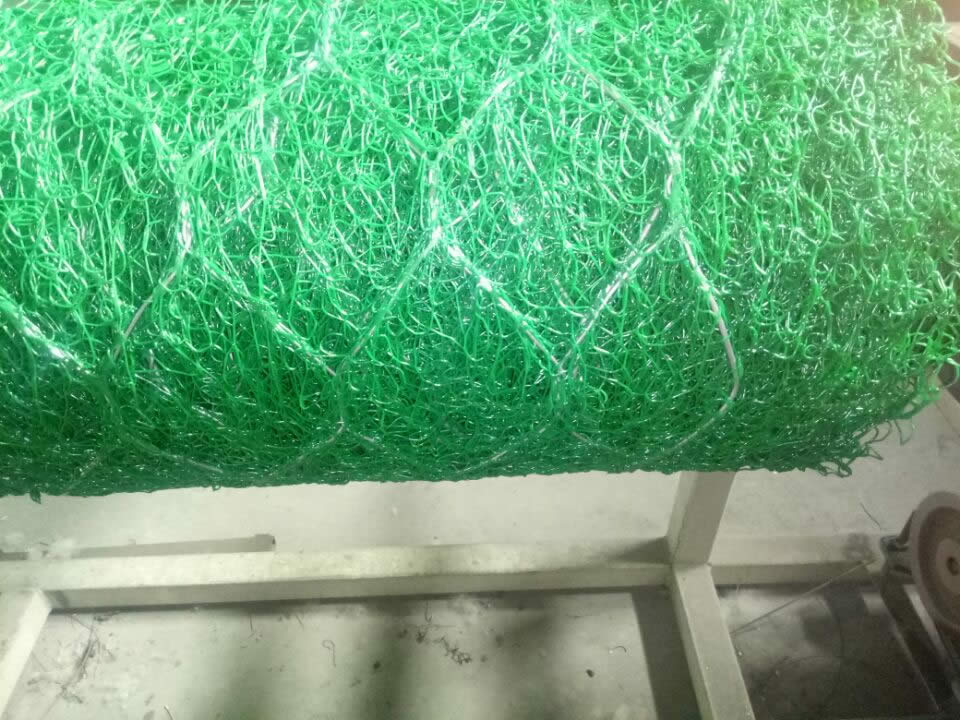

Self permeability Green color Reinforced Mike Mat used in railway, roadbed,, abutment

Material:
Galvanized steel wire , Zinc-aluminum alloy wire(5% aluminum or 10% Al) , PVC coated wire, PE coated wire.
Vegetability: the pore water of the reinforced Mike mat creates conditions for water flow, and realizes the natural exchange between water and soil. This makes the natural growth of vegetation become a reality. After a period of time, the structure and nature really achieve harmony and unity.

Uses:

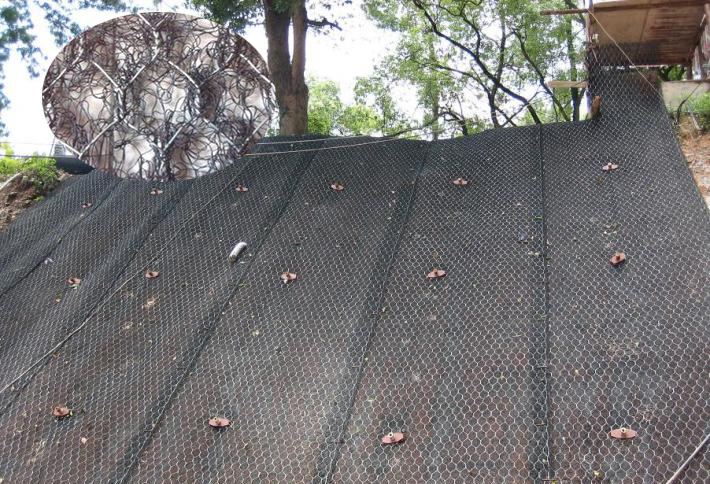

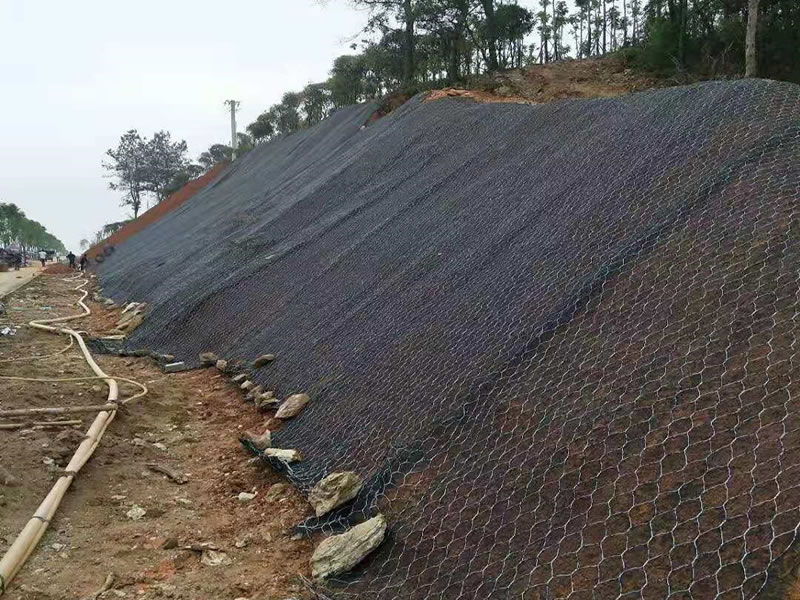

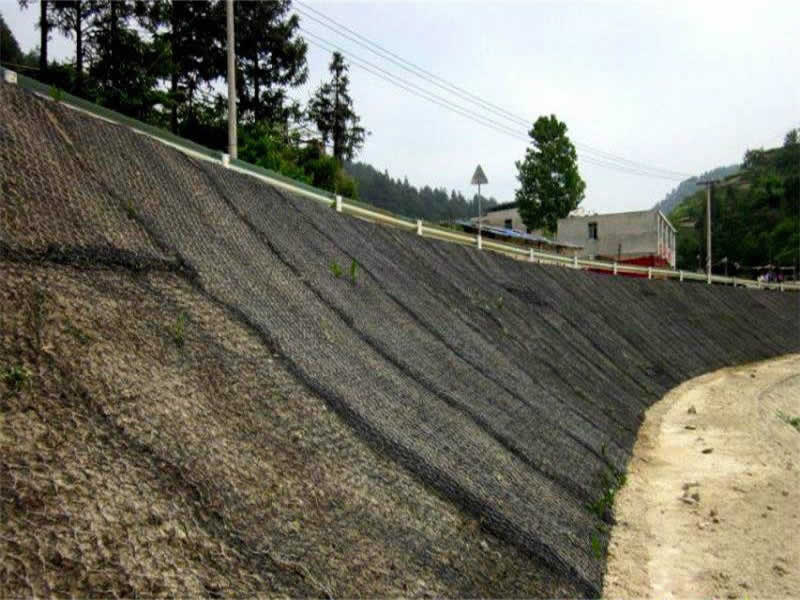

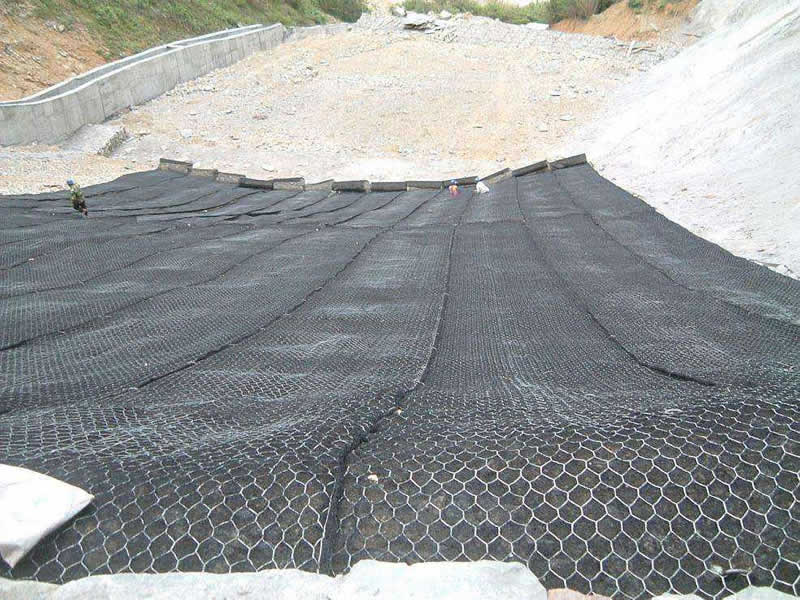

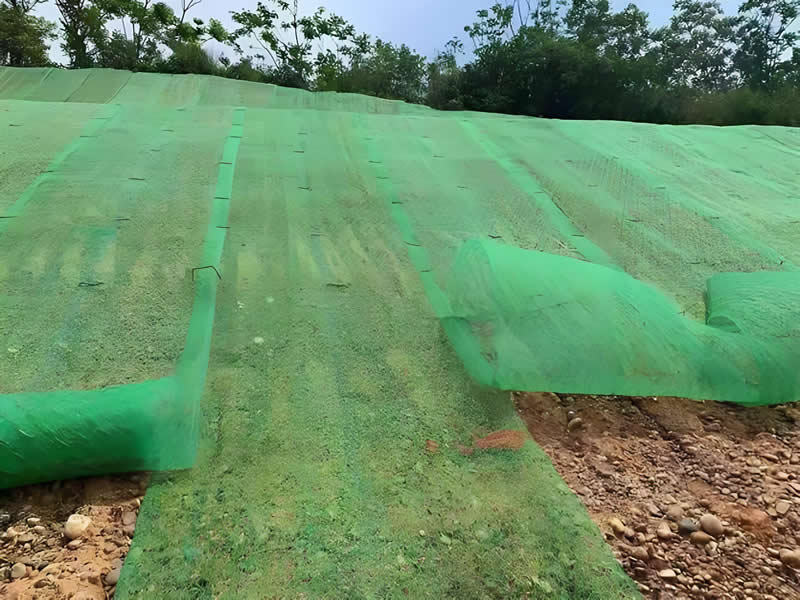

It is widely used in highway railway, roadbed, cutting, abutment, landside, mud rock flow control project, inland, river port, coastal protection urban construction , retainning structure, reiver gegulation project

Technical Paremeter

Item	Mesh size (mmxmm)	Mesh wire diameter (mm)	Selvedge wire diameter (mm)	Material	service life period (year)	Remark
Hexagonal wire netting	60x80	2.0-3.0	2.7-3.4	10% Al –Zn steel wire	40-70	The service life varies according to the environment
	80x120			Plated Se-Cr-Zn steel wire	30-60
	100x120			Galvanized steel wire	0.5-5
Item		Melting point(℃)	Void index (%)	Polymer	Density (Kg/m³)	The UV resistance
Geotechnical material		150	≥90	polypropylene	900	stable

Remarks: Mesh size and steel wire thickness can be chosen according to product use The mesh can be twisted in double or five Determined size

Item	Geotextile mat color	Length/roll (m)	Width (m)	Area(m²)
reinforced gabion mattress	black	25	2	50

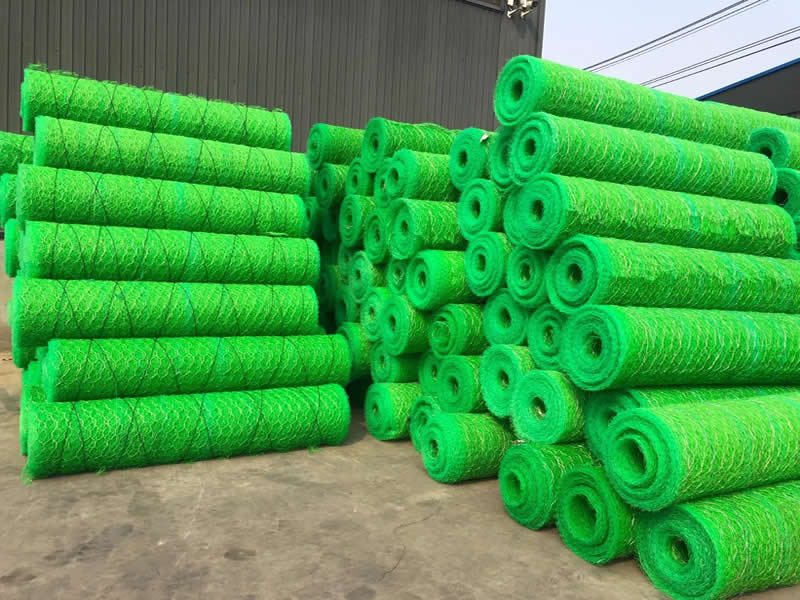

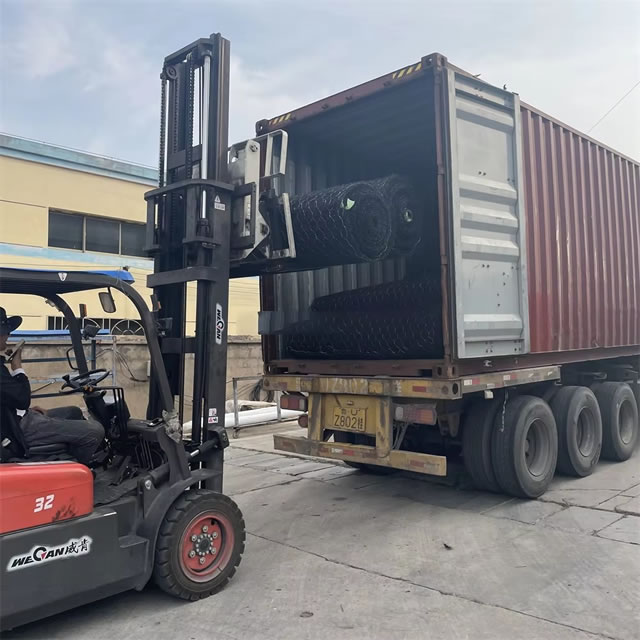

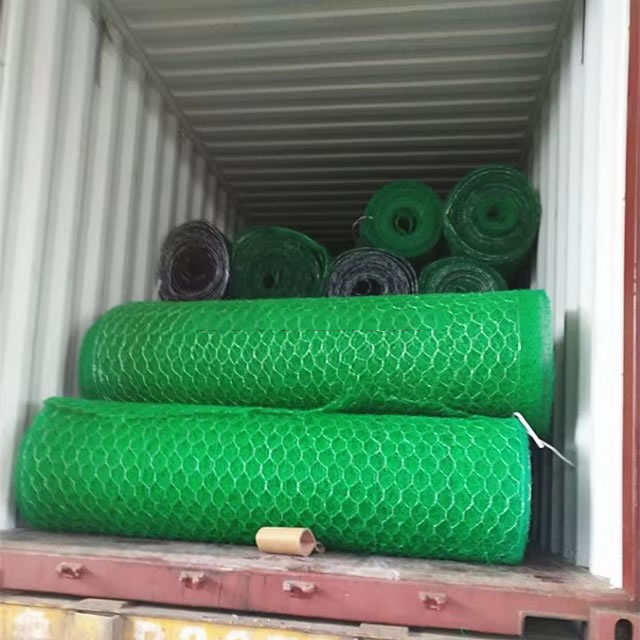

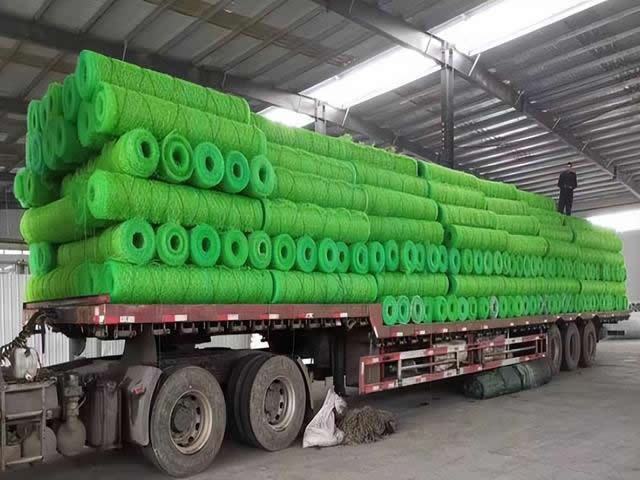

PACKING AND SHIPPING
