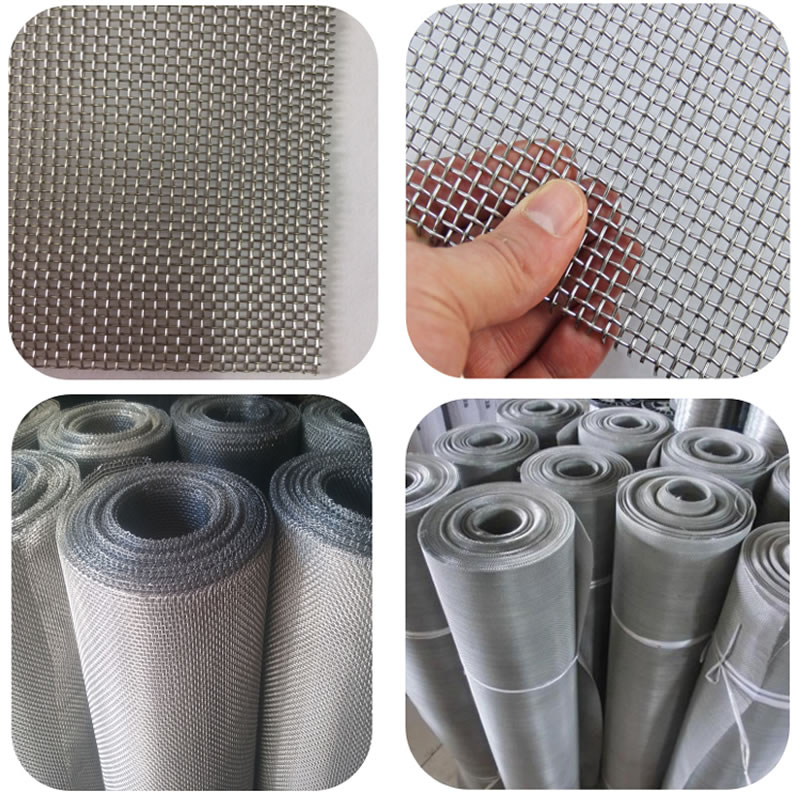

Specification List of Stainless Steel Wire Mesh 、
Just because of these characteristics, the wire mesh made of stainless steel is extensively used in mining, chemical industry, food industry and pharmaceutical industry.

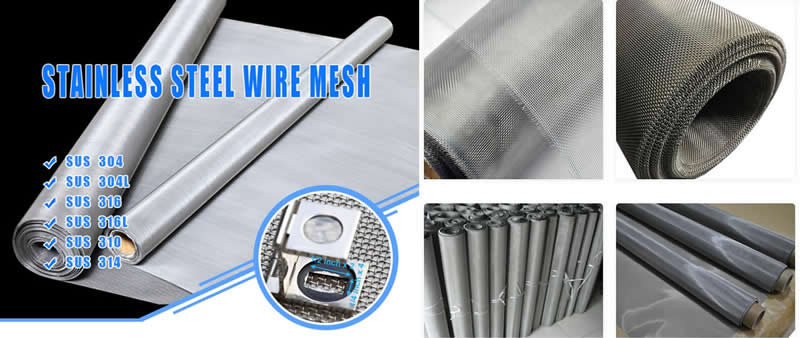

Our Stainless Steel Wire Mesh products are generally made of SUS302, 304, 316, 316L and 321.

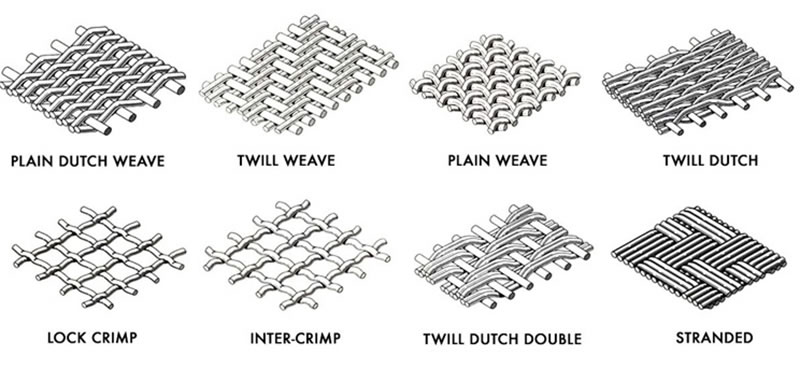

Plain weave:
This is the most commonly used weaving type.
Each warp wire crosses alternately above and below each weft wire. Warp and weft wires generally have the same diameter.
Stainless steel wire mesh |

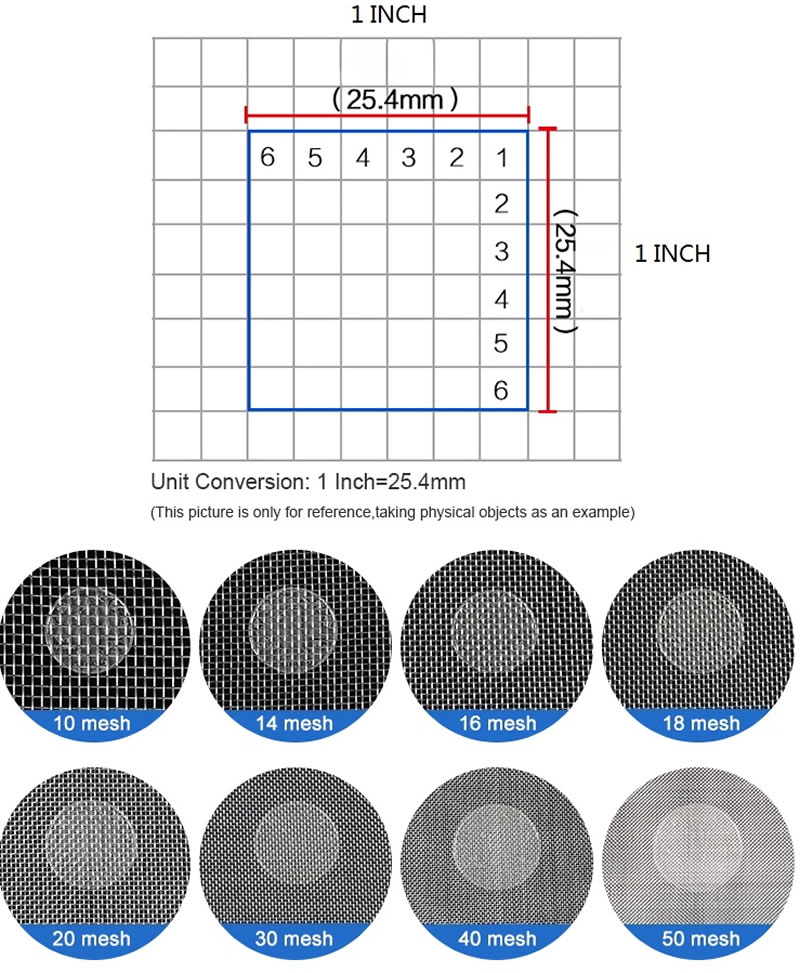

Mesh/ inch | Aperture | Wire Diameter | Aperture |
Mesh | inch | Mesh | inch |
1meshx1mesh | 23.37 | .920 | 23.37 | .920 |
2meshX2mesh | 11.10 | .437 | 11.10 | .437 |
3mesh x 3mesh | 7.09 | .279 | 7.09 | .279 |
4mesh x 4mesh | 4.75 | .187 | 4.75 | .187 |
4mesh x 4mesh | 5.16 | .203 | 5.16 | .203 |
5mesh x 5mesh | 4.04 | .159 | 4.04 | .159 |
6mesh x 6mesh | 3.35 | .132 | 3.35 | .132 |
8mesh x 8mesh | 2.46 | .097 | 2.46 | .097 |
10mesh x 10mesh | 1.91 | .075 | 1.91 | .075 |
10mesh x 10mesh | 2.03 | .080 | 2.03 | .080 |
12mesh x 12mesh | 1.52 | .060 | 1.52 | .060 |
12mesh x 12mesh | 1.60 | .063 | 1.60 | .063 |
14mesh x 14mesh | 1.22 | .048 | 1.22 | .048 |
14mesh x 14mesh | 1.30 | .051 | 1.30 | .051 |
16mesh x 16mesh | 1.13 | .0445 | 1.13 | .0445 |
18mesh x 18mesh | 0.98 | .0386 | 0.98 | .0386 |
20mesh x 20mesh | 0.76 | .0300 | 0.76 | .0300 |
20mesh x 20mesh | 0.86 | .0340 | 0.86 | .0340 |
24mesh x 24mesh | 0.70 | .0277 | 0.70 | .0277 |
30mesh x 30mesh | 0.52 | .0203 | 0.52 | .0203 |
30mesh x 30mesh | 0.54 | .0213 | 0.54 | .0213 |
30mesh x 30mesh | 0.62 | .0243 | 0.62 | .0243 |
35mesh x 35mesh | 0.45 | .0176 | 0.45 | .0176 |
40meshX40mesh | 0.38 | .0150 | 0.38 | .0150 |
50meshX50mesh | 0.28 | .0110 | 0.28 | .0110 |
50meshX50mesh | 0.31 | .0120 | 0.31 | .0120 |
60meshX60mesh | 0.23 | .0092 | 0.23 | .0092 |
60meshX60mesh | 0.25 | .0097 | 0.25 | .0097 |
70meshX70mesh | 0.20 | .0078 | 0.20 | .0078 |
80meshX80mesh | 0.15 | .0060 | 0.15 | .0060 |
80meshX80mesh | 0.18 | .0070 | 0.18 | .0070 |
90meshX90mesh | 0.16 | .0061 | 0.16 | .0061 |
100meshX100mesh | 0.14 | .0055 | 0.14 | .0055 |
100meshX100mesh | 0.15 | .0060 | 0.15 | .0060 |
100meshX100mesh | 0.17 | .0065 | 0.17 | .0065 |
110meshX110mesh | 0.1295 | .0051 | 0.1295 | .0051 |
120meshX120mesh | 0.1168 | .0064 | 0.1168 | .0064 |
150meshX150mesh | 0.1041 | .0041 | 0.1041 | .0041 |
160mesh x 160mesh | 0.0965 | .0038 | 0.0965 | .0038 |
180mesh x 180mesh | 0.0838 | .0033 | 0.0838 | .0033 |
250mesh x 250mesh | 0.0737 | .0029 | 0.0737 | .0029 |
280mesh x 280mesh | 0.0610 | .0024 | 0.0610 | .0024 |
300mesh x 300mesh | 0.0533 | .0021 | 0.0533 | .0021 |
325mesh x325mesh | 0.0457 | .0018 | 0.0457 | .0018 |
350mesh x 350mesh | 0.0432 | .0017 | 0.0432 | .0017 |
400mesh x 400mesh | 0.370 | .0015 | 0.370 | .0015 |
500X500 | 0.0254 | .0010 | 0.0254 | .0010 |
635 x635 | 0.0203 | .0008 | 0.0203 | .0008 |

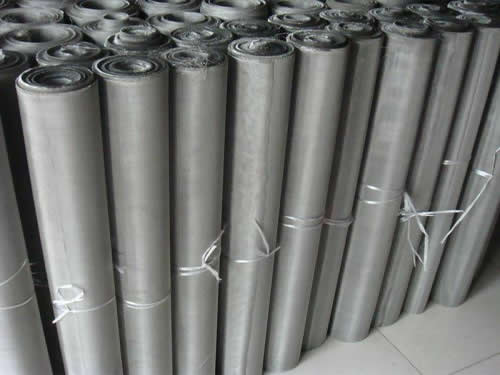

Technical Note: 1.Standard roll length: 30m;width: 0.5m to 1.5m 2.Special sizes available at request 3.Packing: in waterproof paper in rolls. Custom packing available at request |
Twill Weave:
The wires of the weft and the warp intercross two above and two below, inverting the intersections of the warp wire at an established distance and obtaining a rigid, stable and robust type of wire mesh fabric.
Dutch Twilled Weaving:
The wires of the weft and the warp intercross two above with a larger weft wire than the warp.
Such kind of wire mesh allows a greater difference between the diameter and the number of weft and warp wire.
Stainless steel wire mesh(dutch twilled weaving) |
Mesh | Wire Diameter (MM) | Material (AISI) |
12meshX64mesh | 0.58/0.40 | 304 or 316 |
24meshX110mesh | 0.36/0.25 | 304 or 316 |
14meshX88mesh | 0.50/0.33 | 304 or 316 |
30meshX150mesh | 0.18/0.14 | 304 or 316 |
40meshX200mesh | 0.14/0.11 | 304 or 316 |
50meshX250mesh | 0.10/0.071 | 304 or 316 |
80meshX700mesh | 0.06/0.05 | 304 or 316 |
165meshX800mesh | 0.071/0.040 | 304 or 316 |
165meshX1400mesh | 0.05/0.032 | 304 or 316 |
200meshX1800mesh | 0.05/0.03 | 304 or 316 |
325meshX2300mesh | 0.030/0.025 | 316L |
400meshX2800mesh | 0.030/0.02 | 316L |
