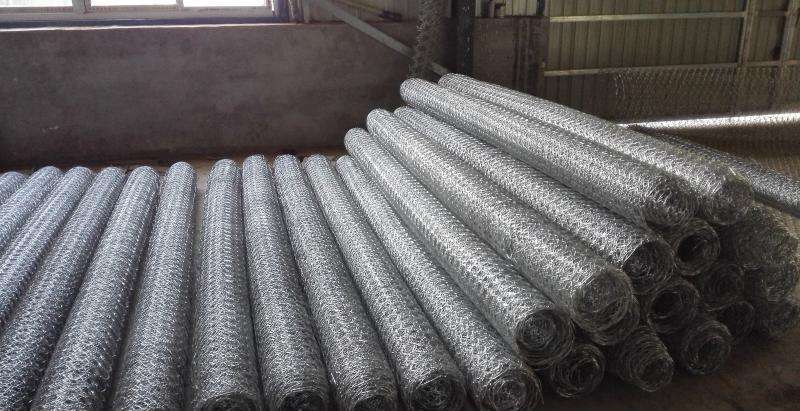

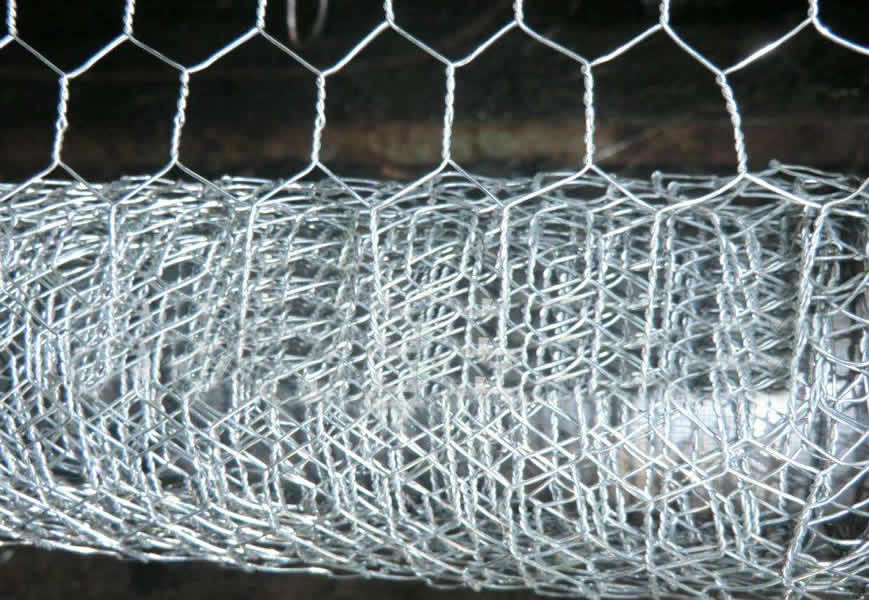

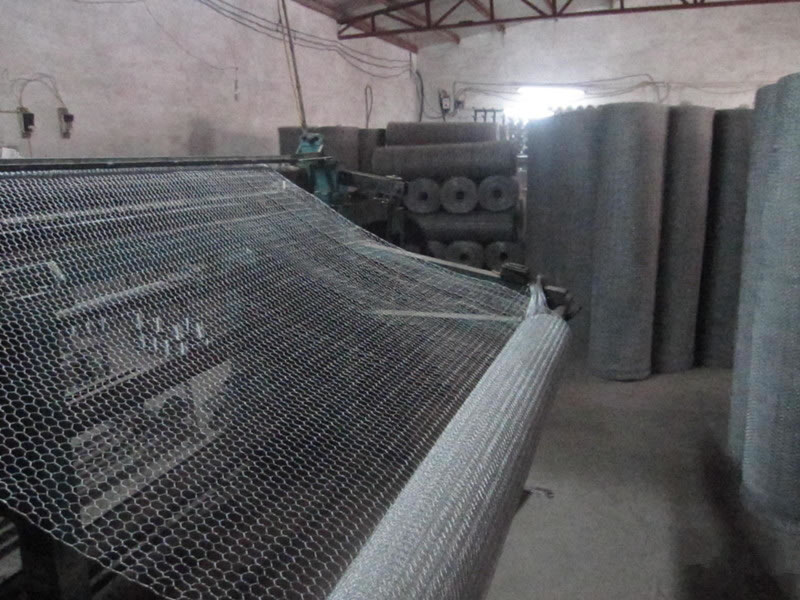

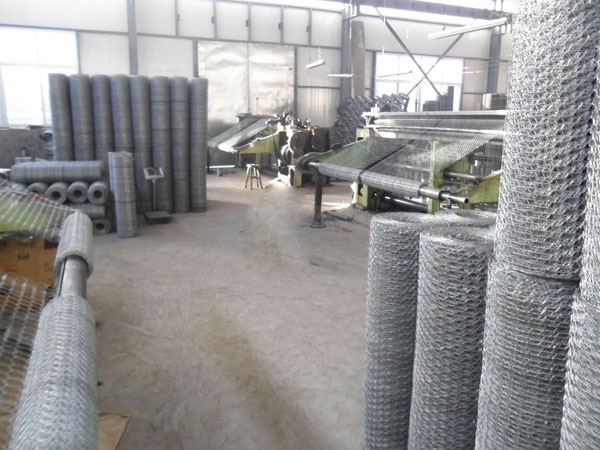

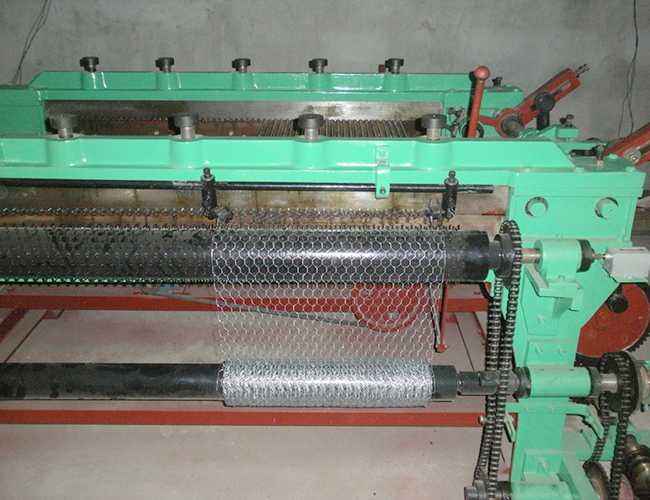

Heal galvanized hexagon net is galvanized before being woven with quality wire into the hexagon net by auto-matic equipment. finally it is heat-galvanized. This product is of anti-corrosion and anti-oxidation.
It is widely used in petroleum and chemicaindustries. construction,and breeding industry for the purposes of wrapping the pipes,heatpreservation, protection of pre-mises, garden afforestation protection and so on. it is also usde as fender for domestic animals and decoration for foodstuffs.
Galvanized hexagonal wire fence in reverse twist (width of 0.5M-2.0M) |
Mesh | Wire Gauge(BWG) | Reinforcement |
Inch | mm | (BWG) | Width(ft) | Strand |
1" | 25mm | 22,21,20,18 | 2' | 1 |
1-1/4" | 32mm | 22,21,20,18 | 3' | 2 |
1-1/2" | 40mm | 20,19,18 | 4' | 3 |
2" | 50mm | 20,19,18 | 5' | 4 |
3" | 75mm | 20,19,18 | 6' | 5 |
Galvanized hexagonal wire fence in normal twist (width of 0.5M-2.0M) |
Mesh | Wire Gauge (BWG) |
Inch | mm |
3/8" | 10mm | 27,26,25,24,23,22,21 |
1/2" | 13mm | 25,24,23,22,21,20, |
5/8" | 16mm | 27,26,25,24,23,22 |
3/4" | 20mm | 25,24,23,22,21,20,19 |
1" | 25mm | 25,24,23,22,21,20,19,18 |
1-1/4" | 32mm | 22,21,20,19,18 |
1-1/2" | 40mm | 22,21,20,19,18,17 |
2" | 50mm | 22,21,20,19,18,17,16,15,14 |
3" | 75mm | 21,20,19,18,17,16,15,14 |
4" | 100mm | 17,16,15,14 |

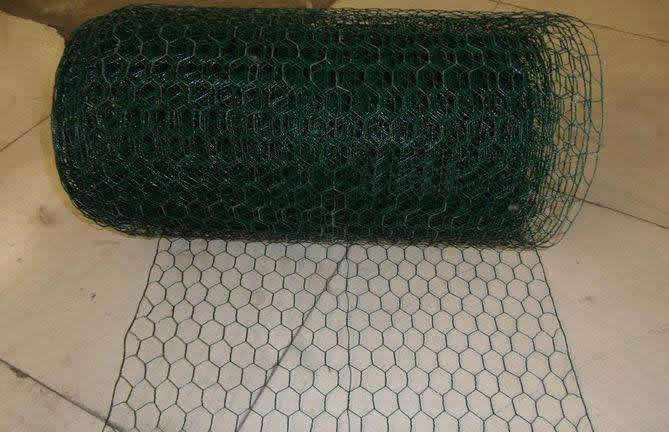

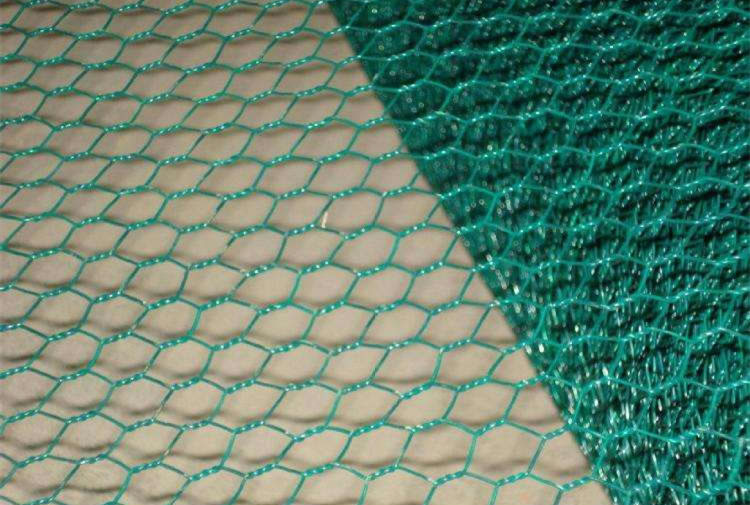

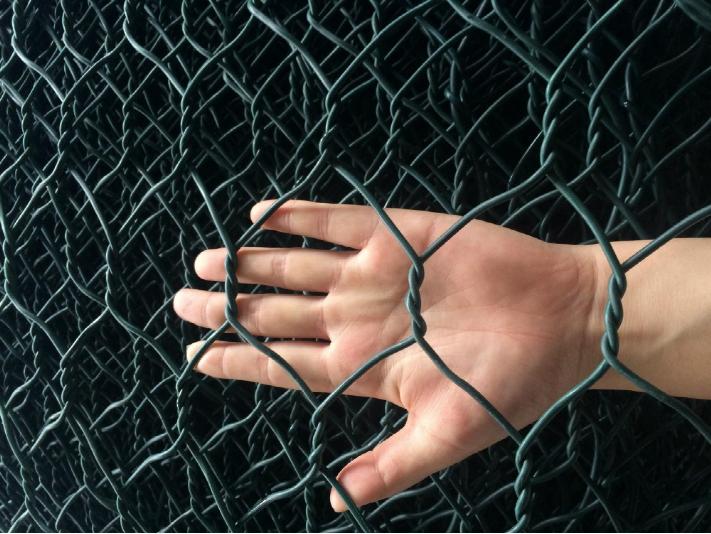

PVC-coated hexagonal chicken wire fence (width of 0.5M-2.0M) |
Mesh | Wire Dia(mm) |
Inch | mm |
1/2" | 13mm | 0.9mm,0.1mm |
1" | 25mm | 1.0mm,1.2mm,1.4mm |
1-1/2" | 40mm | 1.0mm,1.2mm,1.4mm,1.6mm |
2" | 50mm | 1.0mm,1.2mm,1.4mm,1.6mm |
Materials:
The main materials of galvanized hexagonal wire mesh are galvanized iron, stainless steel wire, plastic coated iron wire and even brass wire.
