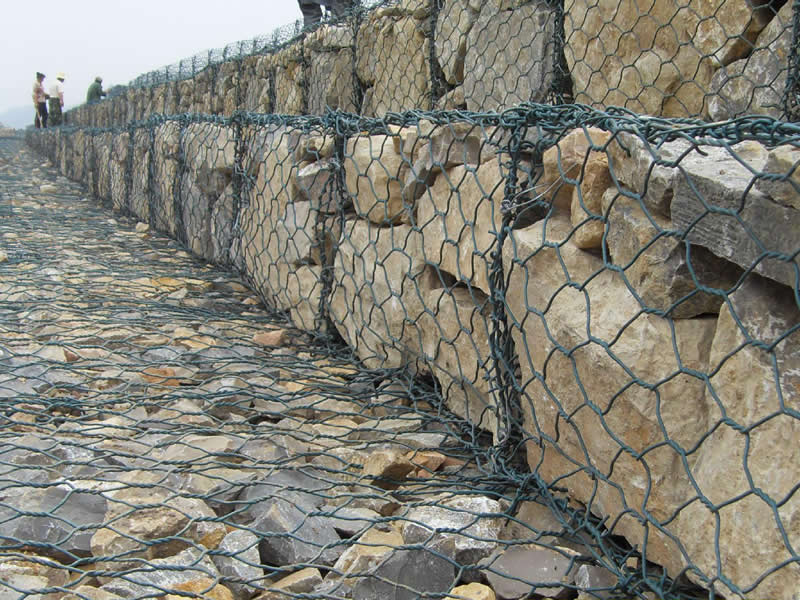

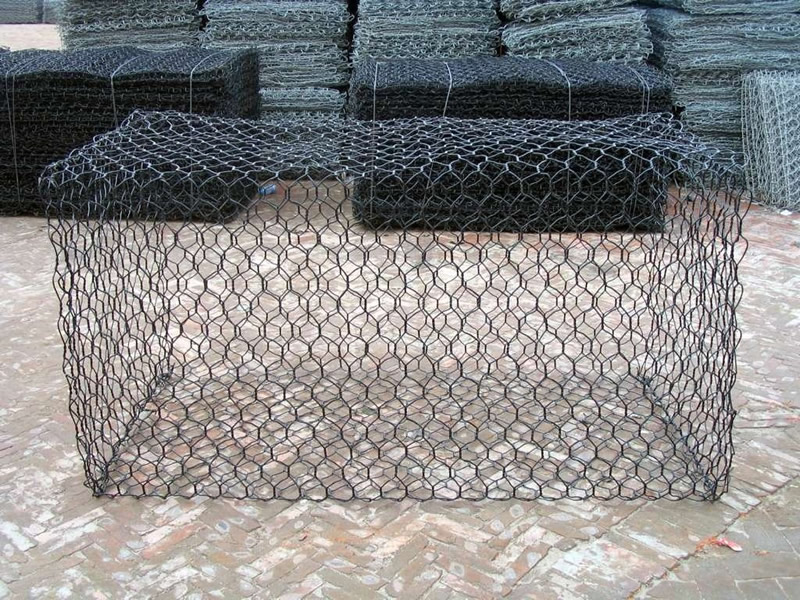

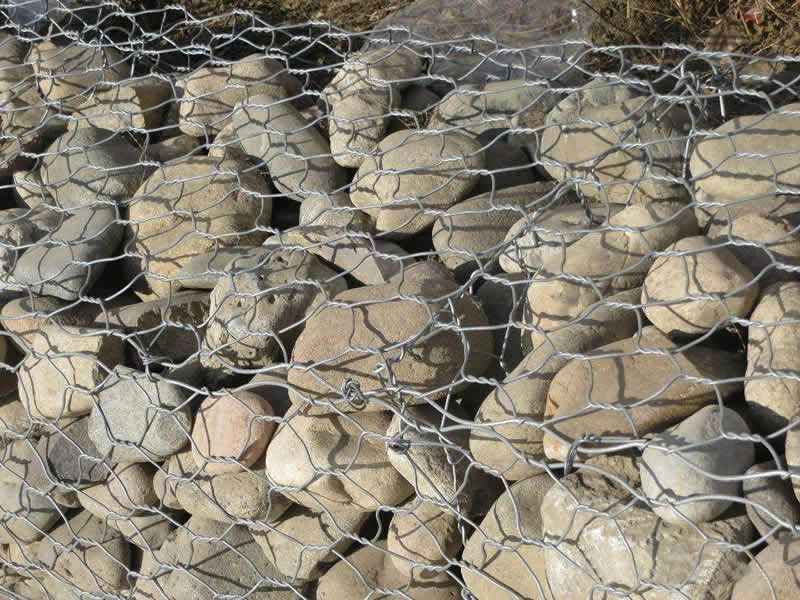

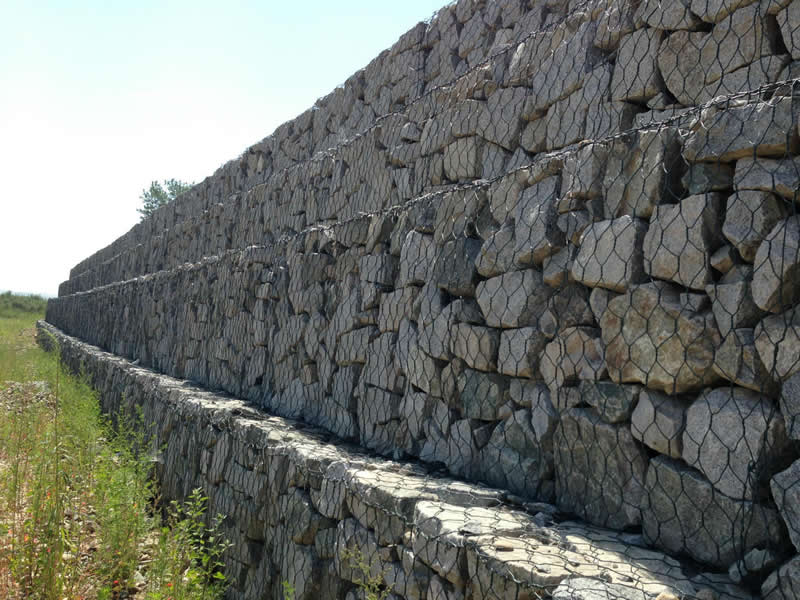

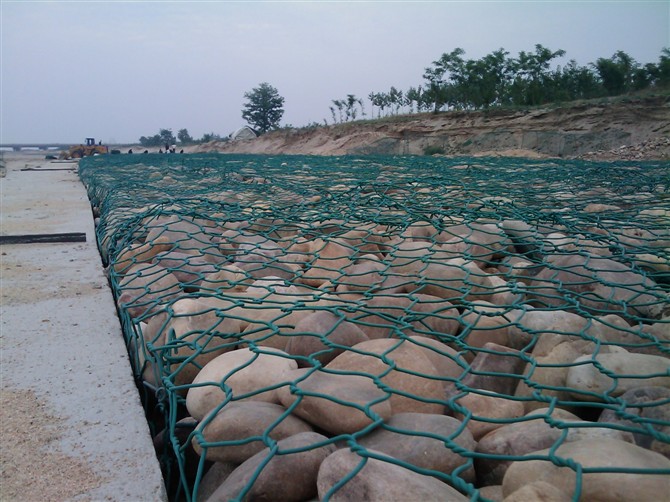

Gabion box are wire containers made of hexagonal wire netting. Wire diameter varies with the hexagonal netting. For hexagonal wire netting with no PVC coating, the wire diameter ranges from 2.0mm to 4.0mm. For those PVC coated hexagonal wire netting, the outside diameter ranges from 3.0mm to 4.0mm. The wire of the outside frame edge is one wire gauge thicker than the wire used for hexagonal wire netting.
Gabion mesh construction Material:
1) Galvanized steel wire: diameter 2.0MM-4.0MM, tensile strength >380Mpa, zinc: 200g / m2.
2) Zinc 5% Aluminum - wire diameter 1.0MM-3.0MM, tensile strength >380Mpa.
3) Coated galvanized steel wire: low carbon steel wire, pvc coated
4) Zinc 5% Aluminum
Gabion mesh construction treatment:
Hot-dipped galvanized, electric galvanized, galvanized aluminum alloy or PVC coated, etc.
Opening (mm) | Wire Diameter (Metal Wire) (mm) | Wire Diameter (PVC Coated)/ Inner/Outside (mm) | Size(m) | Strands |
60X80 | φ2.0-2.8 | φ2.0/3.0-2.5/3.5 | 1x1x0.3 1x1x0.5 2x1x0.3 2x1x0.5 2x1x1 4x2x1 6x2x0.3 6x2x1 As yourrequest | 3 |
80X100 | φ2.0-3.2 | φ2.0/3.0-2.8/3.8 | 3 |
80X120 | φ2.0-3.2 | φ2.0/3.0-2.8/3.8 | 3 |
100X120 | φ2.0-3.4 | φ2.0/3.0-2.8/3.8 | 3 |
100X150 | φ2.0-3.4 | φ2.0/3.0-2.8/3.8 | 3 |
120X150 | φ2.0-4.0 | φ2.0/3.0-3.0/4.0 | 3 |
